Hydraulic Water Well Drilling Rig

LS300HBRP Hydraulic Water Well Drill

LS300HBRP Hydraulic Water Well Drilling Rig

The LS300H takes the hydraulic drill line to new depths thanks to a powerful 13-horsepower mud pump. The water well drill features the same user-friendly design & hassle-free operation as the LS200H, but with a drilling depth of up to 300 feet. Its heavy-duty welded steel frame and re-enforced table base provide added durability while the drill's powerful hydraulics delivers pull-back and push-down forces up to 5,000 pounds. The rig's three-way ball valve enables quick bypass mudflow when adding pipe, and the swivel base design moves the rotary aside to access the borehole.

At a Glance:

Drilling Depth: 300 ft

Borehole Diameter: 6 in

Pull/Push-Back Force: 5,000 lbs

Mast Weight: 174 lbs

Max Drillng Torque: 655 ft-lbs

Speed: 60 rpm at 6 gpm

Hydraulic Power Source: Honda 11 hp

Hydraulic System: 6 gpm at 2,500 psi

Hydraulic Reservoir: 5 gal

Mud Pump: Honda 13 hp

Max Head: 190 ft

Max Flow: 200 gpm

Discharge/Suction: 2 in

Frame: Heavy-duty welded steel

Transportation: Packs into two separate crates

Optional Components (Call to Order):

Anchor kit

Down-the-hole hammer package

Wheel kit

Drill Rig Package Includes:

Mud pump

2,500-psi hydraulic system

Three 2-inch-diameter mud hoses (one 10-foot suction and two 12-foot discharge/bypass)

300 feet of 2-inch diameter M250 drill pipe with straight thread tool joints

4- and 6-inch step drag bits

6- and 7-inch reamers

Toolbox and spare parts

LS300HBRP Owners Manual

LS300HBRP Operators Manual

Starting at $29,655.00

Free Freight - 48 States

Choose Gas or Diesel

NOT FOR SALE IN CALIFORNIA.
SEE WHY.

If you're delivering to a Residential address with no forklift and or dock, $79.00 liftgate service (button below) is required for delivery.

Delivery Liftgate Service
Price $79.00

Lone Star LS300HBRP Hydraulic Basic Package (Gas or Diesel)

Part # Description Price Lead Time

# LS300HBRP-G LS300H BRP–GAS $29,655.00 Up to 4 months

# LS300HBRP-D LS300H BRP–DIESEL $36,900.00 Up to 4 months

LS300H Has a bigger mud pump

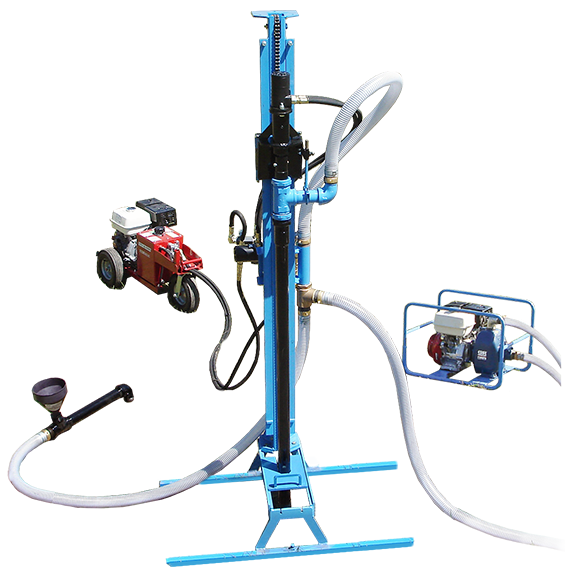

Above photo shows the complete LS200H+ rig package

The rig's three-way ball valve enables quick bypass mudflow when adding pipe, and the swivel base design moves the rotary aside to access the borehole.

Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
