Hydraulic Water Well Drilling Rig

LS200H Hydraulic Water Well Drill

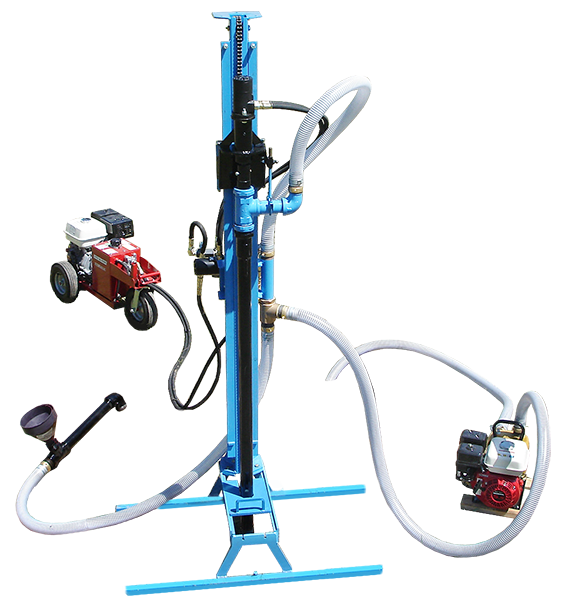

LS200H Hydraulic Water Well Drilling Rig

The LS200H is excellent for drilling applications that require the added power and durability of a hydraulic system. The LS200H features a simple hydraulic system with pullback/pushdown force of up to 2,500 pounds for efficiently drilling to 200 feet in sand, clay and soft rock formations. The drill's heavy-duty welded steel frame and rugged hydraulics stand up to the most demanding applications. The LS200H features a convenient bypass flow control for pushing to maximum force when anchored, and the drill's swivel base design swings the rotary aside for quick, easy access to the borehole.

For the even more challenging soils like medium rock, you'll want the LS200H+ that's just as easy to operate, but features a more powerful hydraulic system to deliver up to 5,000 pounds of pushdown and pullback forces when anchored.

At a Glance:

Drilling Depth: 200 ft

Borehole Diameter: 6 in

Soil Types: Sand, Clay & Soft Rock Formations

Applications: Water Well Drilling

Mast Weight 174 lbs

Max Drilling Torque 655 ft-lbs

Speed 60 rpm at 6 gpm

Hydraulic System 6 gpm at 2,500 psi

Hydraulic Reservoir 5 gal

Max Head 100 ft

Max Flow 165 gpm

Discharge/Suction 2 in

Frame Heavy-duty welded steel

Transportation: Packs into two separate crates for shipping and storage

Choice of Gas or Diesel Power:

Gas: Honda 11 HP & 8 HP engines

Diesel: 10 HP Hatz engines

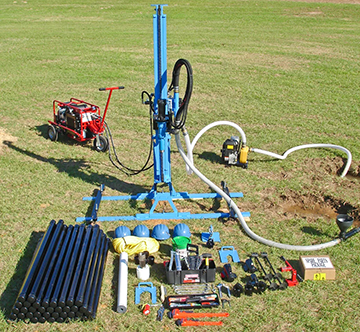

Drill Rig Package Includes:

Mud pump unit

2,500-psi hydraulic system

Three 2-inch-diameter mud hoses (one 10-foot suction and two 10-foot discharge/bypass)

200 feet of 2-inch diameter M250 drill pipe with straight thread tool joints

4- and 6-inch step drag bits

6- and 7-inch reamers

Toolbox and spare parts

LS200H Owners Manual

LS200H Operators Manual

Starting at $23,400.00

Free Freight - 48 States

Choose Gas or Diesel

If you're delivering to a Residential address with no forklift and or dock, $79.00 liftgate service (button below) is required for delivery.

Delivery Liftgate Service
Price $79.00

Lone Star LS200H Hydraulic Basic Package (Gas or Diesel)

Part # Description Price Lead Time

# LS200HBRP-G LS200H GAS $23,400.00 Up to 4 months

# LS200HBRP-D LS200H DIESEL $33,075.00 Up to 4 months

Hydraulic Power Unit

LS200H– Hydraulic power improves performance and allows for faster drilling in sand, clay and gravel soils. Can also handle some soft rock formations. Drills a 6" borehole up to 200 feet. Features 11HP Gas (10HP Diesel) hydraulic power source. Complete package includes 8 HP Gas (10 HP Diesel) Mud Pump, hoses, M250 drill pipe (40 pcs), drag bits, reamers and tools.

Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
