Hydraulic Water Well Drilling Rig - Lone Star LS200H+BRP

LS200H+BRP Hydraulic Water Well Drill

LS200H+BRP Hydraulic Water Well Drilling Rig

The LS200H+ features the same operator-inspired design as the LS200H, but with a more robust hydraulic system and more powerful engine. Its high-capacity, load-bearing swivel coupled with a high-pressure hydraulic motor provides enhanced reliability and serviceability. With the addition of optional tricone roller bits and drill collars, the LS200H+ efficiently drills to 200 feet, even in rock formations. Its heavy-duty frame and reinforced base provide added durability.

At a Glance:

Drilling Depth: 200 ft

Borehole Diameter: 6 in

Pull/Push-Back Force: Up to 5,000 lbs

Mast Weight: 190 lbs

Max Drilling Torque: 655 ft-lbs

Speed: 95 rpm at 10 gpm

Hydraulic Power Source: Honda 20 hp

Hydraulic System: 10 gpm at 3,000 psi

Fuel Tank Capacity: 5 gal

Hydraulic Reservoir: 5 gal

Mud Pump: Honda 8 hp

Max Head: 100 ft

Max Flow: 165 gpm

Discharge/Suction 2 in

Frame: Heavy-duty welded steel

Transportation: Packs into two separate crates

Optional Components (Call to Order):

Anchor kit

Down-the-hole hammer package

Tricone roller bits and drill collars

Wheel kit

Drill Rig Package Includes:

Mud pump

3,000-psi hydraulic system

Three 2-inch-diameter mud hoses (one 10-foot suction and two 10-foot discharge/bypass)

200 feet of 2-inch diameter M250 drill pipe with straight thread tool joints

4- and 6-inch step drag bits

6- and 7-inch reamers

Toolbox and spare parts

LS200H+BRP Owners Manual

LS200H+BRP Operators Manual

Starting at $28,503.00

Free Freight - 48 States

Choose Gas or Diesel

NOT FOR SALE IN CALIFORNIA.
SEE WHY.

If you're delivering to a Residential address with no forklift and or dock, $79.00 liftgate service (button below) is required for delivery.

Delivery Liftgate Service
Price $79.00

Lone Star LS200H+BRP Hydraulic Basic Package (Gas or Diesel)

Part # Description Price Lead Time

# LS200H+BRP LS200H Plus BRP–GAS $28,503.00 Up to 4 months

# LS200H+BRP-D LS200H Plus BRP–DIESEL $41,220.00 Up to 4 months

Hydraulic Power Unit

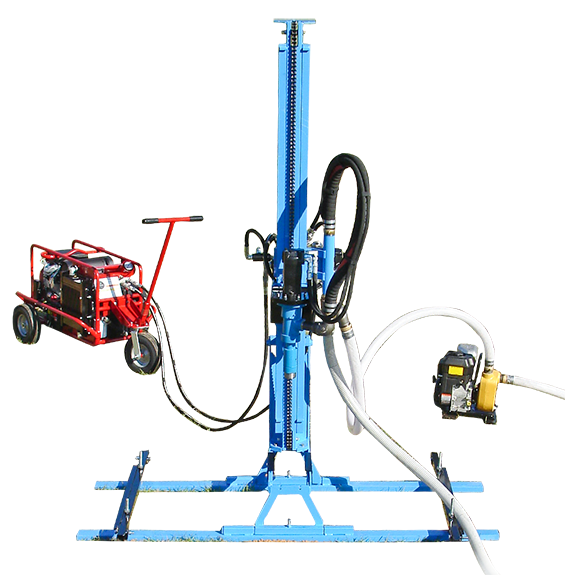

Above photo shows the complete LS200H+ rig package

The Plus rig has more horsepower and a high capacity, load bearing swivel with high pressure hydraulic motors which provides longer seal life and less downtime. This rig will drill soft to medium rock formations when fitted with optional Tricone roller bit and drill collars.

Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
