Lone Star LS200 Water Well Drill

LS200 Water Well Drill

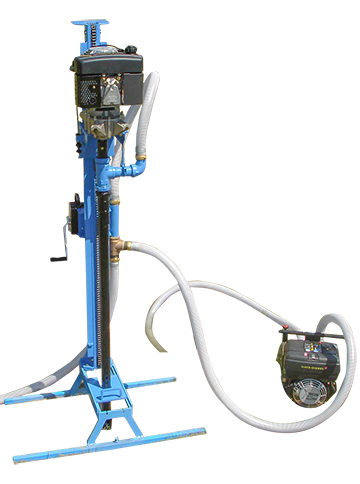

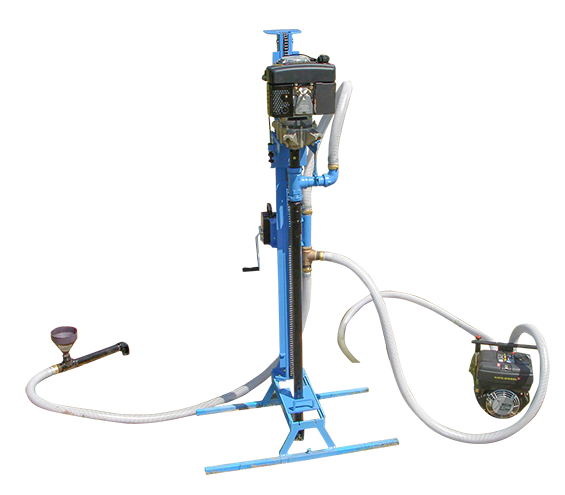

LS200 Portable Mechanical Water Well Drill

Featuring the same compact design and user-friendly operating features as the LS100, the LS200 uses rugged M250 drill pipe to efficiently reach 200-foot depths. The LS200 is capable of drilling a 6-inch borehole to 200 feet in sandy and clay terrain and is easy to operate, tear down and transport for maximum productivity. The entire drill package easily fits in a 91-by-36-by-30-inch crate for transporting to remote locations. The drill's heavy-duty welded steel frame and 3,500-pound winch stand up to demanding drilling applications while its convenient swivel design allows for easy access to borehole.

At a Glance:

Drilling Depth: 200 ft

Borehole Diameter: 6 in

Soil Types: Sand, Clay & Gravel

Applications: Water Well Drilling

Rotary: 5.5 HP Honda with 25:1 reduction gearbox

Mast Weight: 136 lbs

Max Drilling Torque: 190 ft-lbs

Speed: 144 rpm

Mud Pump: 5.5 HP Honda

Max Head: 100 ft

Max Flow: 165 gpm

Discharge/Suction: 2 in

Frame: Heavy-duty welded steel

Transportation: Breaks Down

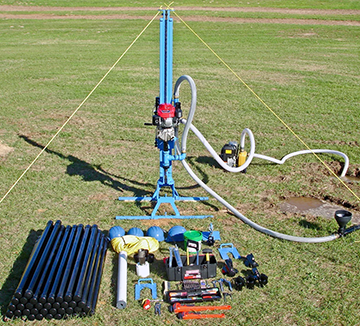

Drill Rig Package Includes:

Mud pump unit with 5.5 HP Honda engine

Rotary power unit with 5.5 HP Honda engine

One 10-foot suction mud hose

Two 10-foot discharge/bypass mud hoses

M250 drill pipe (200' x 2" straight thread tool joints)

4- and 6-inch step drag bits

6- and 7-inch reamers

3,500-pound winch

Toolbox and spare parts

LS200 Owners Manual

LS200 Operators Manual

Price $15,930.00

Free Freight - 48 States

If you're delivering to a Residential address with no forklift and or dock, $79.00 liftgate service (button below) is required for delivery.

Delivery Liftgate Service
Price $79.00

Lone Star LS200 Water Well Drill Rig Package

Part # Description Price Lead Time

# LS200BRP-G LS200 BASIC RIG PACKAGE - GAS $15,930.00 Up to 4 months

Mud Pump: 5.5 HP Honda

The mainstay of the Lone Star family, this versatile rig can drill a 6" borehole up to 200 feet through sand, clay and gravel soils. 5.5HP Honda Gas rotary engine. Package includes 5.5 HP Honda Gas Mud Pump, set of 2" mud hoses, M250 drill pipe (40 pcs), drag bits, reamers and tools. Complete package packs into a 2,000 lb crate.

Drill deeper through sand, clay and gravel soils with the easy-to-use LS200 mechanical drill. The drill's powerful mud pump and larger drill pipe enable it to drill to depths of 200 feet. At just 12 inches wide and 24 inches long, it fits into a 2,000-pound crate for easy shipping to remote locations. The compact drill also is simple to set up and comes equipped with all of the tools needed to get a clean water mission moving. When applications call for more than water, the drill also can be used for soil sampling, geotechnical testing and auger drilling.

Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
