Lone Star LS100 DIY Water Well Drill

LS100 Water Well Drill

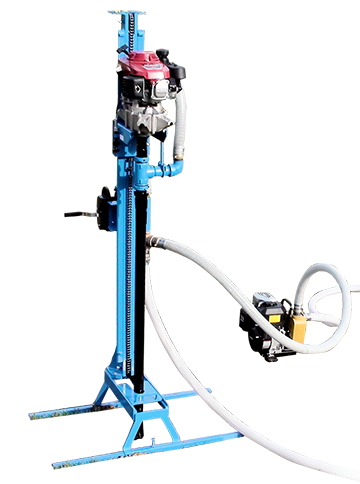

LS100 Portable Mechanical Water Well Drill

The LS100 is the original small, DIY water well drill rig. It's economically priced and designed specifically for water well drilling in developing nations. The LS100 efficiently drills a 6-inch borehole to 100 feet in sandy and clay soils. Its heavy-duty welded steel frame and robust 3,500-pound winch stand up to demanding drilling applications and the convenient swivel design allows the rotary to be moved for easy access to borehole. As a reliable, easy-to-operate drill, the LS100 has brought water to more than 50 countries. The complete Drill Rig Package easily fits in a 91-by-24-by-30-inch crate for convenient transportation.

At a Glance:

Drilling Depth: 100 ft

Borehole Diameter: 6 in

Soil Types: Sand and Clay

Applications: Water Well Drilling

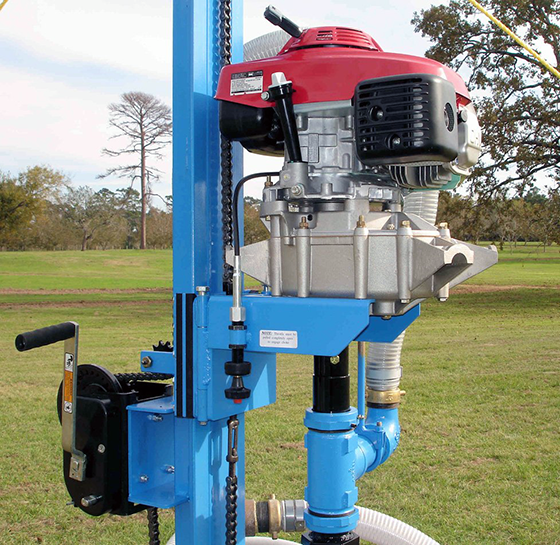

Rotary: 5.5 HP Honda with 25:1 reduction gearbox

Mast Weight: 136 lbs

Max Drilling Torque: 190 ft-lbs

Speed: 144 rpm

Mud Pump: Honda 5.5 HP

Max Head: 100 ft

Max Flow: 165 gpm

Discharge/Suction: 2 in

Frame: Heavy-duty welded steel

Transportation: Packs into 91x24x30 crate

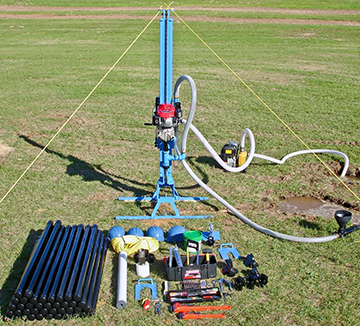

Drill Rig Package Includes:

Mud pump unit with 5.5 HP Honda engine

Rotary power unit with 5.5 HP Honda engine

One 10-foot suction mud hose

Two 10-foot discharge/bypass mud hoses

M50 drill pipe (100' x 1.25" straight thread tool joints)

4- and 6-inch step drag bits

6- and 7-inch reamers

3,500-pound winch

Toolbox and spare parts

LS100 Owners Manual

LS100 Operators Manual

Price $12,591.00

Free Freight - 48 States

NOT FOR SALE IN CALIFORNIA. SEE WHY.

If you're delivering to a Residential address with no forklift and or dock, $79.00 liftgate service (button below) is required for delivery.

Delivery Liftgate Service
Price $79.00

Lone Star LS100 Water Well Drill Rig Package

Part # Description Price Lead Time

# LS100BRP-G LS100 BASIC RIG PACKAGE - GAS $12,591.00 Up to 4 months

Mud Pump: 5.5 HP Honda

Whether new to water well drilling or bringing years of experience, users will quickly get up and running using the LS100 mechanical drill for their clean water mission. The LS100 is simple to operate, portable and compact with a footprint just 12 inches wide and 24 inches long, making it ideal for use in remote locations. It can be used with 1-1/4-inch drill pipe to drill 6-inch boreholes down to 100 feet in sandy and clay soils. In addition to water well drilling, it also can be used for soil sampling, geotechnical testing and auger drilling.

Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
