Trailer Mounted Water Well Drill

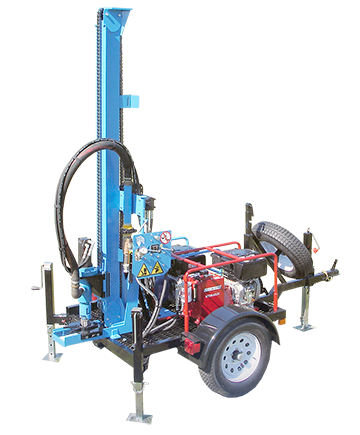

LS-T1 Trailer Mounted Water Well Drill

Trailer Mounted Water Well Drilling Rig

The LST1 drill offers the perfect combination of performance and portability. Suitable for use in a variety of soils, the LST1 drills a 6-inch borehole up to 300 feet. The robust hydraulic system generates up to 5,000 pounds of pull/push-back force for efficient drilling in rugged terrain, and an anchor kit enables the unit to push beyond the trailer's weight. A convenient bypass flow system allows precise control and adjustment to achieve desired push-down force while a three-way ball valve enables the operator to quickly bypass mudflow when adding pipe.

At a Glance:

Drilling Depth: 300 ft

Borehole Diameter: 6 in

Pull/Push-Back Force: Up to 5,000 lbs

Operating Weight: 1,750 lbs

Max Drilling Torque: 655 ft-lbs

Speed: 75 rpm at 8 gpm

Hydraulic Power Source: Honda 13 hp or Yanmar

Hydraulic System: 8 gpm at 2,700 psi

Hydraulic Reservoir: 5 gal

Mud Pump: Honda 13 hp or Yanmar

Max Head: 190 ft

Max Flow: 200 gpm

Discharge/Suction: 2 in

Frame: Heavy-duty welded steel

Transportation: Trailer-mounted

All trailer-mounted drills can ship fully assembled in a 20-foot container or knocked down and palletized.

Optional Components (Call to Order):

Down-the-hole hammer package

Roller cone bits

Drill collars

Drill Rig Package Includes:

Mud pump

Powerful 2,700-psi hydraulic system

Three 2-inch-diameter mud hoses (one 10-foot suction and two 12-foot discharge/bypass)

200 feet of 2-inch internal diameter Mayhew Jr. Drill Pipe with breakout lugs

Load-bearing side inlet swivel with manual J-latch breakout tool

Casing flush tool

Bailer & rope

Tool box & spare parts

Anchor kit

4- and 6-inch step drag bits

6- and 7-inch reamers

Trailer:

Single axle 3,500-pound rating

Towable by ATV or truck

Three leveling jacks

2-inch ball coupler

Spare tire

LS-T1 Owners Manual

LS-T1 Operators Manual

Starting at $37,674.00

Click Here for Freight Information

Choose Gas or Diesel

NOT FOR SALE IN CALIFORNIA.
SEE WHY.

Lone Star LS-T1 Trailer Mounted Water Well Drill (Gas or Diesel)

Part # Description Price Lead Time

# LS-T1G LS300 PLUS HYDRAULIC TRAILER RIG PACKAGE-GAS $37,674.00 Up to 4 months

# LS-T1D LS300 PLUS HYDRAULIC TRAILER RIG PACKAGE-DIESEL $46,260.00 Up to 4 months

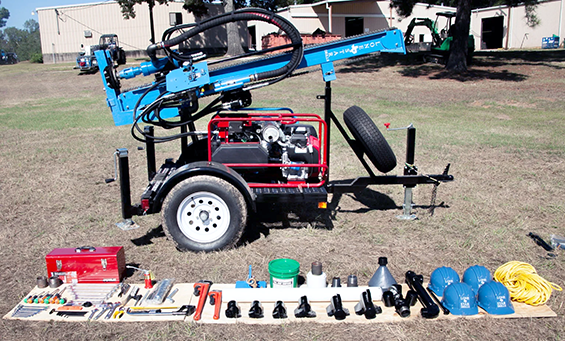

Drill Rig Package (gas shown)

All trailer-mounted drills can ship fully assembled in a 20-foot container or knocked down and palletized.

Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
