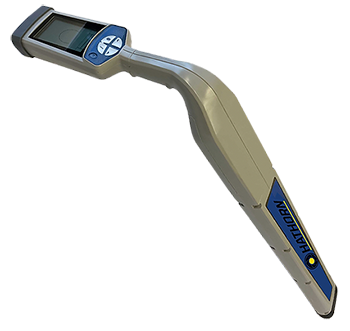

Hathorn Snap Track Locator & Transmitter

Snap Track Locator & Transmitter

Powerful and Feature Packed Utility Locator Makes Accuracy Simple, Fast and Affordable.

Hathorn offers Snaptrack® Locators made in the USA by Rycom®. The Snaptrack® comes configured to the industry standard 512hz sonde locating frequency right out of the box. Just turn it on and get to work. For advanced users the Snaptrack® also has additional frequencies, sonde and line trace frequencies for use with reel upgrades, and additional utility locating equipment.

Snap Track System:

Multiple active frequency options

Passive frequencies for locates of "live" utilities without the use of a transmitter

Passive Modes

Premium Quality:

Ergonomically designed and balanced

Instant push-button depth to 25 feet

Proximity cues to the tracing signal

Both relative and actual signal strength

Backlit digital display

All Hathorn Corporation products come with a one-year limited warranty against manufacturers defects on all parts and labor.

Download Locator Manual

Transmitter Manual

Locator $1,850.00
Transmitter $1,250 .00

Free Freight - 48 States

Snap Track Locator & Transmitter

PART # Description Price

LOC-UT Snap Track Locator $1,850.00

LOC-TR3W Snap Track 3Watt Transmitter $1,250.00

Built on a proven design, and with Pathfinder SAF Technology™ at its core, the SnapTRACK® offers RYCOM's most advanced signal acquisition and filtering technology. The SnapTRACK® cable & pipe locator offers utility locators FrequencyFlex™ allowing users to adapt the system to their specific needs. Multiple active frequencies allow the user to accurately locate with a minimum of interference while maintaining the ability continue locating past faults and around conduit bends. Passive frequencies identify "live" and charged lines by their naturally occurring electromagnetic fields. The SnapTRACK® offers multiple passive frequencies -- 50Hz, 60Hz, Radio Frequency, Cathodic Protection Rectifier & CATV -- allowing line locating without the use of a transmitter.

Updated transmitter functions include improved transmitter induction, multi-frequency coupled induction ranging from 8 kHz to 118 kHz, and automatic impedance matching for direct connections. The5 watt or 10 watt transmitter has the ability to simultaneously apply an two frequencies to a utility. From one transmitter setting the user can locate the main line as well as other services by "lighting up" the entire site. This set-and-forget feature saves you time and money by reducing the need to repeatedly relocate the transmitter. All functions are accessed via weather-proof membrane buttons and both user input and transmitter status are verified with audible responses. The ergonomically designed and balanced SnapTRACK® receiver provides instant push-button depth up to 25 feet and current measurement to help identify target utilities in crowded easements. Proximity cues to the tracing signal are given to the user through either peak or null tone modes while the backlit digital display provides both relative and actual signal strength.

The SnapTRACK® can quickly and simply locate line when faults when used with the optional "A-frame" GRP (ground return probe). As the operator moves towards the fault the receiver will respond with rapidly peaking signal. When the "A-frame" is placed directly over the fault, the receiver will provide a null response.

Conduit pinches can be located using the optional Sondes. Operating on active frequencies of 512Hz, 640Hz, 815 Hz, 8 kHz, or 33kHz Rycom Instruments® Sondes are pushed into non-pressurized conduits and pipes until they reach the point of pinch or blockage. Traceable 25 feet in the air and 10 feet in cast iron, the SnapTRACK® receiver will identify the precise location of the line blockage.

Rycom Instruments®, Inc. locators are designed and manufactured to make utility locating as accurate as you need and as simple as you want.
