WARTHOG WS CLASSIC Jetter Nozzles

Warthog WS Classic Nozzles

Click here for our Nozzle Calculator and Chart

Warthog nozzles by StoneAge – specialists in high pressure waterblasting tools and equipment. Warthog sewer nozzles use controlled rotation technology and jetting configurations to deliver superior results in all applications.

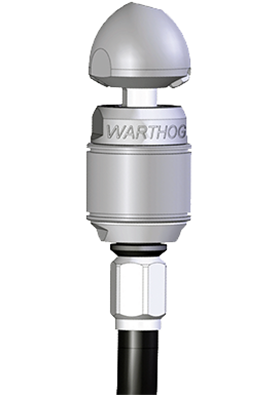

Warthog WS Classic

Model Numbers:
WS-H-1/2-PKG

For 4" - 8" Lines.

The whip hose reduces wear on the pressure hose.

Repairable and rebuildable, field serviceable.

This versatile nozzle easily clears grease, roots, ice, and soil blockages from 4-8” pipes. Ideal for Plumbing professionals using trailer jetters to clean pipes in restaurants, hospitals, multi-story apartment buildings, residential, and other applications.

Specifications:

Pipe Size: 4-8"
Inlet: 1/2" NPT
Pressure Rating: 1200-5000 psi
Service Interval: 40-50 hours

Download WS User Manual

Pro $1434.00
Free Freight - 48 States

State max: PSI & GPM of jetter

State length of hose

Model WS Package Description Price

WS-H-1/2-PKG WS CLASSIC 1/2 NPT , 3 PORT, WITH WHIP HOSE $1434.00

WS Nozzle Service & Overhaul Kits

WS 600-ST1 KIT, WS, SERVICE TIER 1 (uses VS604-S, Sold Separately) Price

BJ 062-S ANTISEIZE,COPPER 1.3, 2g POUCH 1

RJ 011
Brass Seat

RJ 012-TO ASSY,HP SEAL WITH O-RING,.37OD x.23OAL 1

WT 014xx Wave Springxx

WT 032xx Retaining Ring, Spiral Int 1.188xx

VS 604-Sxx FLUID KIT, BC 410 SYRINGE AND SLOW VISC, 6ozxx

Price $55.00

WS 600-VS KIT, SERVICE WITH VISC & SYRINGE Price

BJ 062-S ANTISEIZE, COPPER 1.3, 2g POUCH

RJ 011
Brass Seat

RJ 012-TO ASSY, HP SEAL WITH O-RING, .37OD x .23OAL

VS 604-S FLUID KIT, BC 410 SYRINGE AND SLOW VISC, 6oz

Price $126.00

WS 610-RT1 KIT, WS, OVERHAUL REPAIR TIER 1 (uses VS 604-S, Sold Separately) Price

BJ 026 Port Plug

BJ 062-S
ANTISEIZE, COPPER 1.3, 2g POUCH 1

RJ 008 O-Ring 1

RJ 011 BrassSeat 1

TJ 007 BEARING, BALL 3

WS 010 SEAL, SMALL 1

WS 022-S WEEP SEAL 1

WS 029 SEAL, 29mmOD, DOUBLE LIP WITH SPRING, 5mm WIDE, 70 NITRILE BLA 1

PL 530 Warthog CLASSIC (WS) User Manual Booklet 5.5 x 8.5 1

Price $251.00

WS 610-VS KIT, OVERHAUL WITH VISC & SYRINGE Price

BJ 026 Port Plug

RJ 011-K Brass Seat

RJ012-KTO ASSY, HP SEAL WITH O-RING, .31OD x .23OAL

WS 006 SEAL, 19mmOD, DOUBLE LIP WITH SPRING, 5mm WIDE, NITRILE

WS 007 Bearing, Ball (2)

WS 008 O-RING, 1-5/16OD, 70A, BUNA-N

WS 010 SEAL, 28mmOD, SINGLE LIP WITH SPRING, 4mm WIDE, NITRILE

WS 014 Wave Spring

WS 030 O-RING, 1-1/8OD, 70A, BUNA-N

WS 032 Retaining Ring, Spiral Int 1.188

WS 033 Retaining Ring, HD External .473

WS 150 Carbide Buttons (4)

WS 152 flat HD SCS, 10-32 x 7/16 SS (2)

VS 604-S FLUID KIT, BC 410 SYRINGE AND SLOW VISC, 6oz

Price $321.00

WS 612 KIT, TOOL Price

TJ 064 Fill Tube

WS 105 Installation Tool

Price $160.00

VS 604-S FLUID KIT, BC 410 SYRINGE AND SLOW VISC, 6oz
(used with WS, WS reassembly) Price

BC 410 Syringe Assy

BJ 048-S VISC FLUID, 6oz, SLOW (12,500 cst)

Price $71.00
