WARTHOG WG Classic Jetter Nozzles

Warthog WG Classic Nozzles

Click here for our Nozzle Calculator and Chart

Designed to handle 8-36" pipes, the WG features controlled rotation to deeply penetrate deposits. Many possible head configuration options. Ideal for municipal and industrial sewer cleaning professionals running large combination trucks with 1" & 1-1/4" hose.

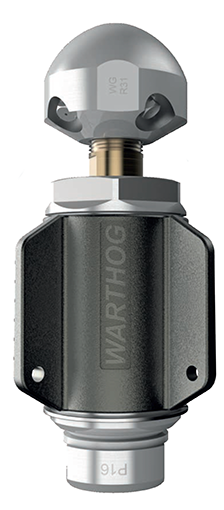

Warthog WG Classic Standard Jetter Nozzle

Model Numbers: See chart below

For 8" - 36" Lines.

1.2K to 5K psi.

Classic Workhorse nozzle since 1990.

For trucks and large trailer jetters.

The WG is the proven choice for municipal, industrial and commercial drain cleaning applications. Predominately used in large combination trucks with 1" (25 mm) hose, the WG-1 is field-maintainable for low cost of ownership and can be fitted with replaceable AP2 nozzle tips sized to maximize pump effectiveness.

Specifications:

Maximum Pressure: 5k psi
Operating Pressure: 1.2 - 5.0 kpsi
Flow: 50-80 gpm
Inlet Connection: 1" NPT
Tool Diameter: 5 in.
Length: 9 in.
Nozzle Ports: 3 x 1/8 NPT
Weight Complete: 9.2lb
Service Interval: 50-60 hours

Download WG Classic User Manual

Starting at $2400.00

Free Freight - 48 States

Choose Model

State max: PSI & GPM of jetter

State length of hose

Model Description Price

WG-1NPT-R31UN-F047-B106-B115-PKG 2000-2500psi - 60-65gpm - 600ft hose $2400.00

WG-1NPT-R31UN-F052-B125-B135-PKG 2500psi - 80gpm - 600ft hose $2400.00

WG Nozzle Service & Overhaul Kits

WG 600-ST1 KIT, WG, SERVICE TIER 1 (fluid bought separately) Price

BJ 062-S ANTISEIZE, COPPER 1.3, 2g POUCH

MJ 011 Brass Seat

HC 012-TO H.P. Seal Assembly

Price $49.00

WG 600-V KIT, SERVICE WITH VISC Price

BJ 048-F VISC FLUID, 6oz, FAST (2,000cst) 1

BJ 062-S
ANTISEIZE, COPPER 1.3, 2g POUCH 1

HC 012-TO H.P. SEAL ASSEMBLY 1

MJ 011 BRASS SEAT 1

PL 527 Warthog CLASSIC (WG) USER MANUAL BOOKLET 5.5 x 8.5 1

Price $82.00

WG 610-RT1 KIT, WG, OVERHAUL REPAIR TIER (fluid bought separately) Price

BJ 010-D Seal, Shaft

BJ 062-S ANTISIEZE, COPPER 1.3g POUCH

HC 012-TO H.P. Seal Assembly

MJ 011 BRASS SEAT

MJ 021-S Weeep Seal

WG 007 BEARING, BALL

WG 008 O-RING, 2-1/4OD, 70A

WG 014 WAVE SPRING

WGP 032 Retaining Ring

PL 527 Warthog Classic WG User Manual

Price $192.00

WG 610-V KIT, OVERHAUL WITH VISC Price

BJ 010-D Seal, Shaft 2

BJ 048-F
VISC FLUID, 6oz, FAST (2,000cst) 1

BJ 062-S ANTISEIZE, COPPER 1.3, 2g POUCH 1

HC 012-TO H.P. SEAL ASSEMBLY 1

MJ 011 BRASS SEAT 1

MJ021-S Weep Seal 1

PL 527 Warthog CLASSIC (WG) USER MANUAL BOOKLET 5.5 x 8.5 1

WG 007 BEARING, BALL 2

WG 008 O-RING, 2-1/4OD, 70A 1

WG 014 WAVE SPRING 1

WGP 032 Retaining Ring 1

Price $224.00

WG 612 KIT, TOOL Price

BJ 105 Tool

HC 064 Fill Tube

Price $58.00

BJ 048-F FAST VISCOUS FLUID, 6OZ, NO SYRINGE Price

Price $32.00

Return to Warthog Nozzles
