Vivax Line Locators

Vivax Digital Sonde Locators

Digital Sonde Locator - Receiver

The first of a new generation of purpose built Sonde Locators. This instrument is designed for daily use and is compatible with most Sondes. The Enhanced ergonomic design is rugged with a Carbon fiber reinforced antenna tube and High impact thermoplastic (ABS) injection molded housing. Visual and audible output have superior sensitivity over wide temperature range and are weather resistant.

Model Number #VM540

Receives 512Hz - 640Hz - 33kHz - 60Hz Passive
Comes Complete:

Can be used to locate 512Hz sondes, up to 15ft deep.
Displays - Depth, Signal level and Battery Condition.
Sound frequency changes with gradient field intensity.
A Padded Soft Carry Case.
Pushbutton keypad with sound on and off feature.
High rejection of power source interference.
Powered by 2 "AA" Alkaline batteries.
Typically, 20 hours continuous use.
Locator Weight 1.37lb - Shipping Weight 4.4lbs.

12 month limited Manufacturer Warranty

User Manual

Sale Price $1100.00
Free Freight - 48 States

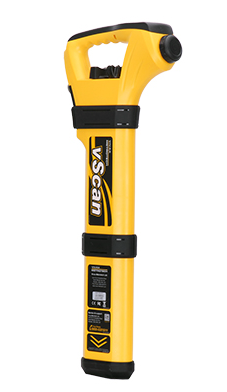

Vivax vScan Standard Receiver

The vScan sonde locator & utility avoidance tool has been designed to make buried utility detection a simple and cost-effective process. You don't need to be an electronics expert to get the most out of the vScan's features. Main features and operational controls are in keeping with industry standards so minimal training is required.

Model Number #VX207-01
Locating Frequencies:

Active modes: 32.768kHz, 131.072kHz

Radio mode: 16.5kHz to 23.9kHz

Passive modes: 60Hz plus harmonics, Power 50Hz plus harmonics

Sondes: 32.768kHz, 512Hz and 640Hz Sonde modes

Key Features:

Receiver only

Large, high resolution, high contrast dot matrix display: makes signal interpretation simple and intuitive.

Auto backlight: for use after dusk.

Compass line direction indicator: ensures correct alignment over utility Visual, audible and vibration alerts: alerts can be set for: shallow cable, overload, excessive swinging and overhead cables.

Passive signals: power, radio and also as a free option, cathodic protection (CP) 100Hz.

Current measurement: helps positively identify the targeted line.

Simple two button operation: on/off and information (such as depth and current).

Movable speaker: allows the user to place the speaker against the ear while holding the receiver at arm’s length

Robust ABS casing with rubber protection bumpers for all site condition use.

2GB auto data logging: helps identify usage and training needs.

12 month limited Manufacturer Warranty

Technical Specifications

Sale Price $1300.00
Free Freight - 48 States

vLoc3-Cam Precision Sonde Location System

The vLoc3-Cam is the easiest to use sonde locator on the market today. The omni-directional antenna array allows for approaching the sonde from any position. The directional arrows will guide the user first to the front or rear locate point and then directly to the sondes position.

Multiple sonde frequencies make it compatible with many other push cameras and crawler cameras. The Pushrod Trace mode shows a second display geared for tracing the path of the pushrod deployed in the pipe or tracing pipes with an optional portable transmitter.

Two Passive locate modes of Power and Radio which will detect the presence of live power lines, CATV, telephone and some metallic pipes which radiate 50/60 Hz from nearby or overhead power lines. For active locating, with the use of a portable transmitter, the vLoc3-Cam comes with an 83.1kHz frequency for tracing the pushrod. This frequency is also ideal for water and gas utilities which generally are larger pipes with bell housings and gaskets as well as locating ungrounded small diameter drop wires and inducing signals through the soil, onto services when direct connecting is not an option.

Model Number #vLoc3-Cam

Features:

360º Guidance arrows
High visibility color 4.3"/10cm Display
Two sets of 3D antennas
Omnidirectional antenna array
Sonde locate and pushrod trace modes
Locator Weight 4.6lb
Operating Frequencies

Sonde mode - 512Hz, 640Hz, 8,192kHz, 33kHz, and 83kHz

Pushrod trace/line trace - 83kHz

Power - 50Hz and 60Hz

Radio - 10kHz - 22.7kHz bandwidth

12 month limited Manufacturer Warranty

Brochure

User Manual

Sale Price $2100.00

Free Freight - 48 States
