RIDGID Line Locators -Scout / NaviTrack

RIDGID LINE LOCATORS

The NaviTrack Scout® & SeekTech® SR-20 Locators are designed to solve the most demanding remote transmitter (sonde) locates using multi-directional locating technology. Easier Locates: The NaviTrack Scout multi-directional antenna technology sees the entire signal all of the time. Simply maximize the signal strength and you have found the target. No nulls or false peaks to complicate the locate. Accuracy: These locators verify the locate position using a micro-mapping display to mark distinctive poles in front of and behind the target, insuring an accurate locate. Automatic Depth: Depth is automatically calculated and displayed when over the target.

RIDGID Scout Locator

Model Number # 19238

Standard Equipment
• Navitrack Mark Chips, Pkg. of 3
• Scout Carrying Case

Specifications
• Weight: 3 lbs (1.4 kg).
• Power Source: 4 C-Cell batteries.
• Battery Life: Approximately 24 hours.
• Meets FCC Class B and EN 55022 Class B requirements.

Standard Frequencies
Sonde:
16 Hz, 512 Hz, 640 Hz, 874 kHz and 33 kHz.

Line Trace:
128 Hz, 1 kHz, 8 kHz and 33 kHz.

Passive AC Line Trace:
60 Hz, 50 Hz.

NaviTrack Scout Brochure

NaviTrack Scout Instruction Sheet

NaviTrack Scout Manual

NaviTrack Scout Parts List

Full Lifetime Warranty

Price $1771.97

Free Freight - 48 States

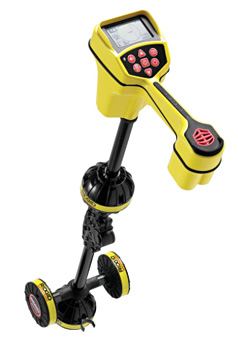

RIDGID SeekTech SR-20 Locator

A lightweight yet rugged receiver that provides all the information needed for faster, more accurate locates.

Model Number # 21893

Features

Target line and guidance arrows quickly identify distortion.

Proximity signal and signal strength help work through difficult locates.

Trace any frequency from 10 Hz to 35 kHz.

Standard Equipment
• Navitrack Mark Chips, Pkg. of 3
• SR-20 Carrying Case

Specifications
• Weight: 3.5 lbs.
• Power Source: 4 C-Cell batteries (included).
• Battery Life: Approximately 16 hours.
• Meets FCC Class A and EN 55022 Class A requirements.

Standard Frequencies
Sonde:
16 Hz, 512 Hz, 640 Hz, 850 Hz, 8 kHz, 16 kHz, 33 kHz.

Line Trace:
128 Hz, 1 kHz, 8 kHz and 33 kHz.

Passive Power Trace:
50 Hz, 60 Hz, <4 kHz Broadband.

Passive Radio Trace:
4 kHz-15 kHz, 15 kHz-36 kHz.

Price $ 3,104.95

Free Freight - 48 States
