Hydraulic Water Well Drilling Rig - Lone Star LS300H+BRP

LS300H+BRP Hydraulic Water Well Drill

LS300H+BRP Hydraulic Water Well Drilling Rig

The LS300H+ has the power to satisfy the most demanding drilling applications. The unit's bypass flow control provides 5,000 pounds of powerful pushing force when anchored, ensuring the drill reaches its desired depth every time. Optional tricone roller bits and drill collars adapt the drill to a variety of conditions, helping it push through rock formations. The water well drill's heavy-duty frame and reinforced base provide added durability. Additionally, the drill's high-capacity load-bearing swivel offers extended seal life, virtually eliminating costly downtime.

At a Glance:

Drilling Depth: 300 ft

Borehole Diameter: 6 in

Pull/Push-Back Force: Up to 5,000 lbs

Mast Weight: 190 lbs

Max Drilling Torque: 655 ft-lbs

Speed: 95 rpm at 10 gpm

Hydraulic Power Source: Honda 20 hp

Hydraulic System: 10 gpm at 3,000 psi

Fuel Tank Capacity: 5 gal

Hydraulic Reservoir: 5 gal

Mud Pump: Honda 13 hp

Max Head: 190 ft

Max Flow: 200 gpm

Discharge/Suction: 2 in

Frame: Heavy-duty welded steel

Transportation: Packs into two separate crates

Optional Components (Call to Order):

Anchor kit

Down-the-hole hammer package

Tricone roller bits and drill collars

Wheel kit

Drill Rig Package Includes:

Mud pump

3,000-psi hydraulic system

Three 2-inch-diameter mud hoses (one 10-foot suction and two 12-foot discharge/bypass)

300 feet of 2-inch diameter M250 drill pipe with straight thread tool joints

4- and 6-inch step drag bits

6- and 7-inch reamers

Toolbox and spare parts

LS300H+BRP Owners Manual

LS300H+BRP Operators Manual

Starting at $34,164.00

Free Freight - 48 States

Choose Gas or Diesel

NOT FOR SALE IN CALIFORNIA.
SEE WHY.

If you're delivering to a Residential address with no forklift and or dock, $79.00 liftgate service (button below) is required for delivery.

Delivery Liftgate Service
Price $79.00

Lone Star LS300H+BRP Hydraulic Basic Package (Gas or Diesel)

Part # Description Price Lead Time

# LS300H+BRP-G LS300H Plus BRP–GAS $34,164.00 Up to 4 months

# LS300H+BRP-D LS300H Plus BRP–DIESEL $44,298.00 Up to 4 months

LS300H+ mud pump

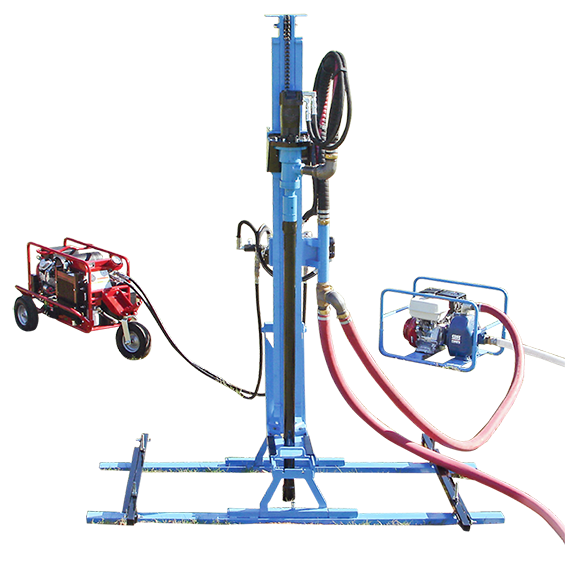

Above photo shows the complete LS200H+ rig package

Optional tricone roller bits and drill collars adapt the drill to a variety of conditions, helping it push through rock formations.

Return to Well Drills

Not sure which DIY Water Well Drill is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
