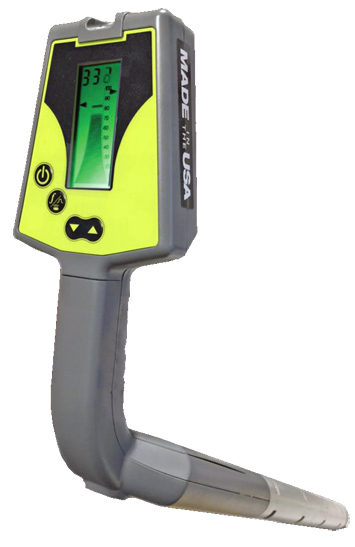

INSIGHT VISION 512Hz Line Locator IV-512

Insight Vision 512Hz Locator

Insight Vision 512Hz Locator

Model Number #IV-512

Simple, inexpensive & ideal device for locating camera inspection systems, sondes and utilities. The Insight Vision 512Hz locator is an effective solution for sewer inspection and drain cleaning. Available with 512Hz, 640Hz & 33kHz sonde locating. The Insight Vision locator ensures tracking of any manufacturer's camera or sonde system and the ability to locate utilities with the addition of a line transmitter. Push-button depth along with peak signal response allows the user to minimize interference and maintain the location of the sonde or system.

Locator Includes:

Receiver: 3 active frequency receiver with digital depth measurement
Carrying Case: Padded case for receiver
Manual: Operations manual and Locator Theory DVD.
Batteries: Six C-cell batteries and 8 D-cell batteries included for immediate use

Specifications:

Operating Frequency: Sonde Mode: 512Hz & 33kHz; Line Mode: 82kHz

Antenna Mode: Peak & Left/Right Guidance

Display Indicators: Backlit LCD bar graph, low battery, signal strength, mode and function indicators

Audio Indication: Variable pitch response

Current Measurement: Display indicates relative current

Power Source: 6 "C" cell batteries

Battery Life: Continuous: 20 hours Intermittent: 65 hours

Signal Strength: LCD bar graph, absolute signal strength 0-999

Gain Control: Manual gain adjustment & automatic centering

Dynamic Range: 126 dB

Depth Measurement: Push-button to 25' & triangulation method

Operating Temperature: -4º F to +133º F

Size: 30.3" x 9.4"

Weight: 3 lbs.

Price $1,720.00
Free Freight - 48 States
