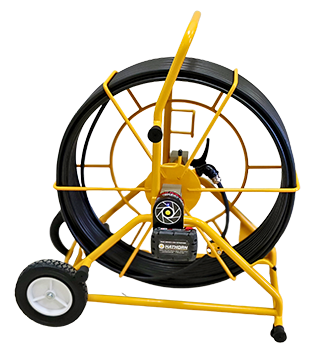

Hathorn Large Reel

Hathorn Large Reels

Self leveling camera head and 200ft - 500ft of push rod. For pipes 3-12" diameter.

Ultra-sturdy 8" wheels to make transporting easy.

Non-WiFi models will require a PC-CR12 patch cable to connect to the control module.

Large and XL reels:

WiFi option

Choice of Length

Choice of Camera head size

Self Leveling

Footage counter and reset

Powered by 18v Milwaukee™ or compatible batteries

Includes 512Hz sonde

Industry-leading warranty

Premium Quality:

Genuinely North American made

Butt-welded steel frame construction

Industry-leading HDPE premium cables

All Hathorn Corporation products come with a one-year limited warranty against manufacturers defects on all parts and labor.

Download User Manual

Large Reels Spec Sheet

Starting at $6,700.00

Free Freight - 48 States

Hathorn Large Reels

PART # WiFi Head Size Rod Diameter Min. 90º Elbow Max. Pipe Well Lit Price

200 Foot Reels

LR-2143-SL No 1.43" 1/2" 3" 10" $6,700.00

LR-2168-SL No 1.68" 1/2" 3" 12" $6,700.00

WLR-2143-SL Yes 1.43" 1/2" 3" 10" $8,000.00

WLR-2168-SL Yes 1.68" 1/2" 3" 12" $8,000.00

300 Foot Reels

LR-3143-SL No 1.43" 1/2" 3" 10" $7,100.00

LR-3168-SL No 1.68" 1/2" 3" 12" $7,100.00

WLR-3123-SL Yes 1.23" 1/2" 2" 6" $8,400.00

WLR-3143-SL Yes 1.43" 1/2" 3" 10" $8,400.00

WLR-3168-SL Yes 1.68" 1/2" 3" 12" $8,400.00

400 Foot Reels

LR-4143-SL No 1.43" 1/2" 3" 10" $7,500.00

WLR-4123-SL Yes 1.23" 1/2" 2" 6" $8,800.00

WLR-4143-SL Yes 1.43" 1/2" 3" 10" $8,800.00

WLR-4168-SL Yes 1.68" 1/2" 3" 12" $8,800.00

500 Foot Reels

XLR-5168-SL No 1.68" 1/2" 3" 12" $9,000.00

XLR-5568-SL No 1.68" 5/8" 3" 12" $9,600.00

Hathorn®'s Wi-Fi camera reels offer the convenience of streaming video inspections directly to two Apple or Android mobile devices at the same time using our free Hathorn® app! Allows the user to take screen shots, record videos and make voice commentary. Save videos to your phone, email to your clients or attach to your route management software seamlessly. All Hathorn® cameras are portable and can be powered by external 18V Milwaukee® or equivalent batteries (not included) offering over 6 hours of run time on a single 3.0Ah battery. Batteries are inserted into the near indestructible Hathorn® hub. No wires, no external battery cradles, just solid North American engineered aluminium and plastic. Hathorn's new app "Hathorn-V4" is free for everyone but requires you to be running Apple iOS 15 or Android 12 and above. Ensure that your device is running one of these operating systems. Please also note that our app does not allow the user to pause during recordings. Instead simply stop the recording and start a new one. For a pause feature please purchase the H7 or H12+.
