Earth Augers Horizontal Boring

Earth Augers
for Horizontal Boring

Augers

Horizontal auger boring is easier and faster than ever using your heavy duty 1/2" right angle drill to power through hard ground, clay or gravelly soil. Simply attach one or more sections of our auger bit to your drill and begin drilling in low speed. What used to take hours to dig by hand is now done in minutes.

Auger under sidewalks, foundations and other concrete obstructions quickly, easily, safely and with minimum destruction to the surrounding environment. Power our horizontal boring set with your heavy duty 1/2" right angle drill and discover why contractors are ditching their pry bars and shovels for our augers. Start with one auger section and add extensions to the back as you bore.
Details:

5 feet, 7 feet or 10 feet lengths

3.25", 4.75" or 5.75" diameter

Additional Auger sections available.

Available with or without Milwaukee 1680-20 1/2" Super Hawg™.

Completely replaceable nose and cutter assembly.

Specifications:

10-18 steel helicoid flighting

10-20 heavy wall mandrel drawn steel tubing

Cast steel cutter blade

High speed steel drilling nose.

Insulating drive adapter to help prevent electric shock.

Scroll down for Milwaukee drill information.

Nose and cutter assembly included

Optional: Milwaukee 1680-20 1/2" Super Hawg™

Starting at $515.00
Free Freight - 48 States

Horizontal Boring Augers with Drill Adapter and Nose / Cutter Assembly

PART # Dimensions (assembled) Description Price

3.25" diameter Augers

325X5 3.25" x 5' (2) two-foot sections assemble to 5 feet. backorder

325X7 3.25" x 7' (2) three-foot sections assemble to 7 feet. backorder

325X10 3.25" x 10' (3) three-foot sections assemble to 10 feet. backorder

As above, with Milwaukee 1680-20 1/2" Super Hawg™:

325X5MD 3.25" x 5' (2) two-foot sections assemble to 5 feet. backorder

325X7MD 3.25" x 7' (2) three-foot sections assemble to 7 feet. backorder

325X10MD 3.25" x 10' (3) three-foot sections assemble to 10 feet. backorder

4.75" diameter Augers

475X5 4.75" x 5' (2) two-foot sections assemble to 5 feet. $515.00

475X7 4.75" x 7' (2) three-foot sections assemble to 7 feet. $620.00

475X10 4.75" x 10' (3) three-foot sections assemble to 10 feet. $940.00

As above, with Milwaukee 1680-20 1/2" Super Hawg™:

475X5MD 4.75" x 5' (2) two-foot sections assemble to 5 feet. $1015.00

475X7MD 4.75" x 7' (2) three-foot sections assemble to 7 feet. $1120.00

475X10MD 4.75" x 10' (3) three-foot sections assemble to 10 feet. $1440.00

5.75" diameter Augers

575X5 5.75" x 5' (2) two-foot sections assemble to 5 feet. $535.00

575X7 5.75" x 7' (2) three-foot sections assemble to 7 feet. $640.00

575X10 5.75" x 10' (3) three-foot sections assemble to 10 feet. $965.00

As above, with Milwaukee 1680-20 1/2" Super Hawg™:

575X5MD 5.75" x 5' (2) two-foot sections assemble to 5 feet. $1035.00

575X7MD 5.75" x 7' (2) three-foot sections assemble to 7 feet. $1140.00

575X10MD 5.75" x 10' (3) three-foot sections assemble to 10 feet. $1465.00

Note: additional drill sections available. If not ordered with original auger, auger blades may not line up perfectly. Call to order additional sections.

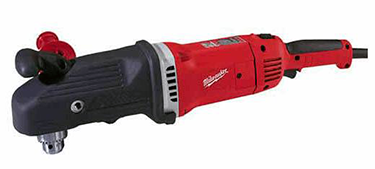

Optional Milwaukee 1680-20 1/2" Super Hawg™

13 Amps

120V AC Cord, 8 feet

Length 22" Weight 14.7 lbs

No Load RPM 450-1,750

With side handle

Tool Warranty 5 Years

Becky bores through clay with auger attached to Dewalt right angle drill Auger bits are available in 3.25 inch diameter for electricians and cable installers, 4.75 inch diameter for plumbers installing schedule 40 PVC pipe, or the larger 5.75 inch diameter. Choose from five foot, seven foot or ten foot lengths. Custom lengths are also available upon request.

Return to Horizontal Boring & Drilling

Not sure which auger is right for you? Call us and allow one of our knowledgeable sales staff to guide you.
