RIDGID SeeSnake Compact C40 Camera System with TruSense

SeeSnake® Compact C40 Camera System
with TruSense®
For 1.5"-6" sewer lines

SeeSnake® Compact C40 Camera System with TruSense®

The SeeSnake Compact C40 provides digital recording monitoring with Wi-Fi, for fast, efficient job setup. Tilt monitoring allows you to view your monitor at your desired angle or remove it for convenient job site placement. Always nail the image with self-leveling camera technology. The TruSense technology features a high dynamic range image sensor with two-way communication between the camera and SeeSnake.
Specifications:

Line Capacity: 1.5" to 6"

Push Cable Length: 131'

Push Cable Diameter: 0.26" with 3 mm Fiberglass core

Push Cable Jacket: Polypropylene

Push Cable Bend Minimum Radius: 2.5"

Weight (without batteries): 17.6 lbs.

Size Length: 25"

Width: 14"

Height: 17"

Camera Type: 1"

Operating Temperature: 14°F to 122°F

Storage Temperature: 14°F to 158°F

Ingress Protection without Monitor: IPx5

Light Source: High-Intensity LED Sonde 512 Hz

Features:

Quick-release dock for the Cs6x Versa.

Digital Recording Monitor with Wi-Fi provides fast, efficient job setup.

Tilt the monitor to the desired viewing angle while docked or remove it for convenient job site placement.
Self-Leveling Camera head provides an image that is always upright.

TruSense technology features a high dynamic range (HDR) image sensor and two-way communication between the camera and SeeSnake CSx series Wi-Fi enabled monitors.

HDR image sensor maintains color and detail in high dynamic range scenes.

TiltSense™ inclinometer shows camera's angle in-pipe on CSx series monitors.

Download the free HQx Live app to view and record inspection jobs on your phone or tablet.

Use the high power FlexMitter® 512 Hz sonde with a RIDGID® receiver to locate the camera.

Download Owner's Manual

Compare SeeSnake Cameras

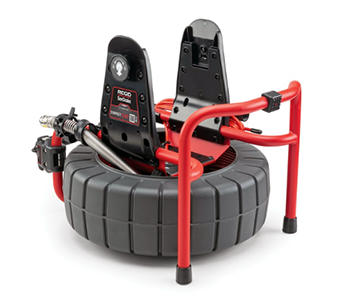

C40 Reel

C40 Reel + CS6x VERSA Digital Recording Monitor

Starting at $7,320.07

Free Freight - 48 States

Choose Model

RIDGID SeeSnake® Compact C40 Camera System with TruSense®

Model Description Price

# 63668 SeeSnake® Compact C40 Reel with Self-Leveling Camera $7,320.07

# 63823 SeeSnake® Compact C40 System + CS6x VERSA Monitor $10,700.74

# 63828 SeeSnake® Compact C40 System + CS6x VERSA Monitor, 18V Battery & Charger $11,053.27

RIDGID Monitors that complete this SeeSnake Camera

PART # Monitor Description and Link to More Information

69038 CS65xr Monitor + 2 Batteries and 1 Charger

57288 CS12x Digital Reporting Monitor with WiFi + 2 Batteries and 1 Charger

64968 CS6x Versa Digital Reporting Monitor with WiFi + 2 Batteries and 1 Charger

70128 CSx Via with Std/Mini CSx Via Mount + 2 Batteries and 1 Charger

See all these SeeSnake Monitors

Reporting Monitors

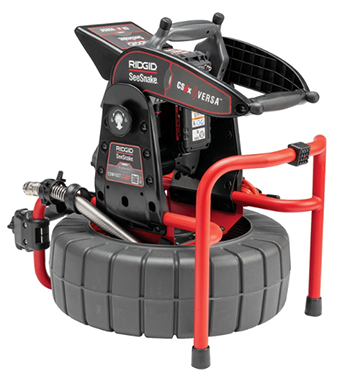

The RIDGID® SeeSnake® Compact C40 camera reel offers fast, easy setup and can take on the most diverse and demanding inspection conditions. The Compact C40 features a self-leveling camera at the end of a push cable stiff enough to give you the power to push through small or restricted pipes, yet flexible enough to make multiple tight turns. The FleXmitter ® sonde helps locate points of interest in the pipe. FleXmitter sondes have long, powerful antennas capable of putting out a signal strong enough to pinpoint the camera’s location underground, while still preserving its flexibility through turns. All SeeSnake monitors can connect to the Compact C40. Pair it with a SeeSnake CSx™ series Wi-Fi enabled monitor to deliver professional multimedia reports to your customers quickly and easily. The CS6x Versa is specifically designed to mount on the Compact C40’s docking system for viewing ease, quick setup, and effortless transport.
