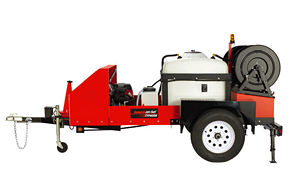

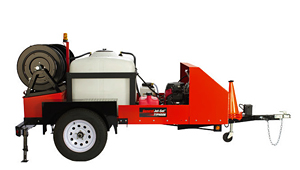

Trailer Jetters - General Wire JM2512

General Wire JM2512 Trailer Jetters

The JM2512 Typhoon trailer jet is ideal for clearing big lines or remote jobs far from a water source. Twelve gallons of water pulsates down the line every minute at a powerful 2500 psi to blast lines clear of grease, sediment, and debris. The 200 gallon holding tank carries enough water to handle remote applications where access to water is limited.

A 690 cc engine with electric start (battery not included) powers the 2500 psi, 12 gpm pump with Vibra-pulse® through a V-belt reducer.

Two hose reels - an electric rewind jet hose reel with 400 ft. x 1/2" capacity featuring a variable speed controller, and a supply hose reel carrying 150 ft. x 3/4" hose - are mounted at the rear of the unit next to the pressure gauge and output valve.

Engine controls, including an hour meter, are mounted within easy reach in the lockable tool box with slide action doors just below the reels.

JM2512 Trailer Jetter

Ideal for clearing big lines or remote jobs far from a water source. A 2500 psi/12 gpm pump, driven by a 24 hp engine blasts lines clear of grease, sediment, and debris.

Model Numbers:

JM2512-V:
JM2512, Basic

JM2512-A-V:
JM2512, plus 250JH3 (250' x 1/2") Hose, JN-HP-150 Nozzle Set.

JM2512-C-V:
JM2512, plus 400JH3 (400' x 1/2") Hose, JN-HP-150 Nozzle Set.

The JM2512 Typhoon is mounted on a heavy duty trailer rated for 3500 lbs. per axle with bearing buddies, and rides on 15" radial tires with modular wheels. A splash guard at the front protects the pump and engine from road debris. The body is protected by a durable powder-coated epoxy finish for added weather protection.

Features:

Powerful jet ideal for clearing large lines with high water flow.

200 gallon holding tank carries enough water to handle remote jobs far from a water source.

690 cc (24 hp) engine with low oil shut off, and electric start.

Heavy duty 2500 psi, 12 gpm triplex pump with Vibra-Pulse®.

400 ft. Jet hose reel with variable speed electric rewind

150 ft. supply hose reel - Both mount at rear of unit.

Anti-freeze system protects unit from freeze damage.

Electric brakes, safety strobe light, safety cones, rear stabilizer jacks and retractable guide arm.

Safety strobe light

Three safety cones with holder

Rear fold down stabilizer jacks

Retractable guide arm

Complete with spray wand and trigger.

Made in U.S.A.

Specifications:

Battery not Included

Pressure: 2500 psi

Flow: 12 gpm

Engine: 690 cc w/Low oil shut off, electric start, and V-belt reducer.

Tank Capacity: 200 Gallons Jet Hose Reel: Electric variable speed rewind, swivel, 400 ft. x 1/2" hose capacity.

Supply Hose Reel: Manual, swivel, drag brake, and reel lock, 150 ft. x 3/4" capacity.

Safety Features: Electric brakes, safety strobe light, three safety cones with holder, rear fold down stabilizer jacks, and retractable guide arm.

Weight: 1900 lbs. Empty; 3300 lbs. Loaded

Trailer Dimensions: 153" L x 82" W x 65" H

JM2512 Literature PDF

JM2512 Parts List & Diagram PDF

Call for Pricing
Click Here for Freight Information

NOT FOR SALE IN CALIFORNIA. SEE WHY.

JM2512 Trailer Jetter Packages

Model Description Price

# JM2512V JM2512, Basic Call

# JM2512-A-V JM2512, plus 250JH3 (250' x 1/2") Hose, JN-HP-150 Nozzle Set. Call

# JM2512-C-V JM2512, plus 400JH3 (400' x 1/2") Hose, JN-HP-150 Nozzle Set. Call
