Save Thousands of Dollars - Build Your Own Pump-Out System

If you have the tank, we have the rest!

Build Your Own Pump-Out System and save!

The Conde pumping system kits can save you a fortune, providing all the working components for a deluxe pump out system that can be mounted on your truck or trailer. It’s as simple as ABC. You supply the tank and we supply the other components required for a complete system. Own your own pump out service, grease traps, machine sumps, portable toilets, and other liquid waste applications.

The Conde Pump Out System is built to last with the best and most durable components available, to give years of service even in the harshest environments. The Conde Pump Out System is simply the best pumping system on the market today.

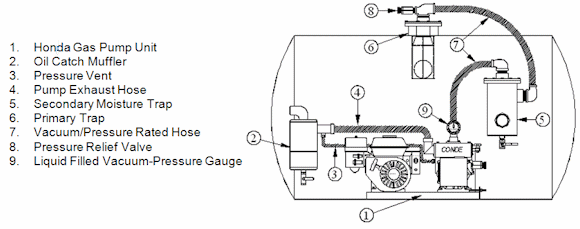

Typical Pump-Out System DesignBuild Your Own Pump-Out System

NOTE - Your tank should meet the following specifications.  All tanks must have domed heads (not flat) and be properly baffled for hauling large amounts of liquid. Tanks up to a 600 gallon in size should have a minimum steel thinkness of 3/16” and for larger tanks a 1/4“ thickness is required. Never use more than 10 psi on a non-coded tank.


break

CONDE PRO VAC 3 PUMP OUT SYSTEM
VACUUM PUMP KIT

Model Number #PROVAC3-KIT

Designed For 100 to 300 Gallon Tanks

Comes Complete:

• Honda 5.5 hp, Electric Start Engine
• Conde, ProVac 3 - Vacuum/Pressure Pump
• Max Air Flow 17 SCFM @ 15” Hg Flow Rate @ Free Air
• 60 Second - 300 Gallon Pull Down Time
• Oil Catch Muffler
• 15ft – 1-1/2” Air Hose
• Secondary Moisture Trap
• Pressure Relief Valve
• Vacuum Relief Valve
• Liquid Filled Vacuum Pressure Valve
• 20' of 2" suction hose
• Pipe Fittings
• Automatic, full tank shut-off (Primary Trap)
• Hose Barbs
• Sight Glasses
• 12” Manway
• Shipping weight 290 lbs
• Ships in 7 to 10 days

PUMP OUT SYSTEM

Price $3695.00
Free Freight - 48 States

Delivery Liftgate Service
Price $79.00

break

CONDE SUPER 6 PUMP OUT SYSTEM
VACUUM PUMP KIT

Model Number #SUPER6-KIT

Designed For 200 to 500 Gallon Tanks

Comes Complete:

• Honda 5.5 hp, Electric Start Engine
• Conde, Super 6 - Vacuum/Pressure Pump
• Max Air Flow 35 SCFM @ 15” Hg Flow Rate @ Free Air
• 42 Second - 500 Gallon Pull Down Time
• Oil Catch Muffler
• 15ft – 1-1/2” Air Hose
• Secondary Moisture Trap, Stainless Steel
• Pressure Relief Valve
• Vacuum Relief Valve
• Liquid Filled Vacuum Pressure Valve
• 20' of 2" suction hose
• Pipe Fittings
• Automatic, full tank shut-off (Primary Trap)
• Hose Barbs
• Sight Glasses
• 12” Manway
• Shipping weight 400 lbs
• Ships in 7 to 10 days

PUMP OUT SYSTEM

Price $4495.00
Free Freight - 48 States

Delivery Liftgate Service
Price $79.00

Download User Manual

break

CONDE SDS 6 PUMP OUT SYSTEM
VACUUM PUMP KIT

Model Number #SDS6-KIT

Designed For 500 to 1000 Gallon Tanks

Comes Complete:

• Honda 9 hp, Electric Start Engine
• Conde, SDS 6 - Vacuum/Pressure Pump
• Max Air Flow 58 SCFM @ 15” Hg Flow Rate @ Free Air
• 47 Second -1000 Gallon Pull Down Time
• Oil Catch Muffler
• 15ft – 1-1/2” Air Hose
• Secondary Moisture Trap, Stainless Steel
• Pressure Relief Valve
• Vacuum Relief Valve
• Liquid Filled Vacuum Pressure Valve
• 20' of 2" suction hose
• Pipe Fittings
• Automatic, full tank shut-off (Primary Trap)
• Hose Barbs
• Sight Glasses
• 12” Manway
• Shipping weight 440 lbs
• Ships in 7 to 10 days

PUMP OUT SYSTEM

Price $5195.00
Free Freight - 48 States

Delivery Liftgate Service
Price $79.00

Download User Manual

break

CONDE SDS 12 PUMP OUT SYSTEM
VACUUM PUMP KIT

Model Number #SDS12-KIT

Designed For 1000 to 2000 Gallon Tanks

Comes Complete:

• Honda 13 hp, Electric Start Engine
• Conde, SDS 12 - Vacuum/Pressure Pump
• Max Air Flow 90 SCFM @ 15” Hg Flow Rate @ Free Air
• 56 Second - 2000 Gallon Pull Down Time
• Oil Catch Muffler
• 15ft – 1-1/2” Air Hose
• Secondary Moisture Trap, Stainless Steel
• Pressure Relief Valve
• Vacuum Relief Valve
• Liquid Filled Vacuum Pressure Valve
• 20' of 2" suction hose
• Pipe Fittings
• Automatic, full tank shut-off (Primary Trap)
• Hose Barbs
• Sight Glasses
• 12” Manway
• Shipping weight 515 lbs
• Ships in 7 to 10 days

PUMP OUT SYSTEM

Price $5995.00
Free Freight - 48 States

Delivery Liftgate Service
Price $79.00

break
Return to Pump Out Sysems
